Garador MK4 / F-Type Garage Door- INNER SPRING
  • Stock: In Stock
  • Model: Garador Mk4 / F-type Spring - Inner only
£41.95
Ex Tax: £34.96

Available Options

  • When replacing garage springs, it is recommended to replace both springs at the same time, to ensure the spring tension and door remain balanced.

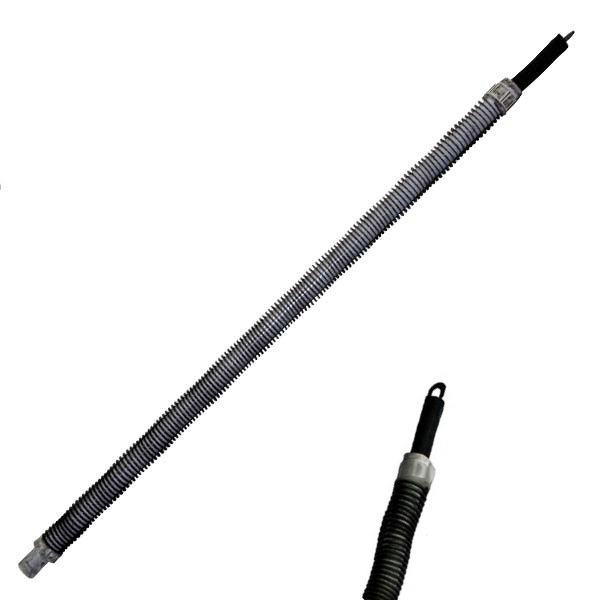

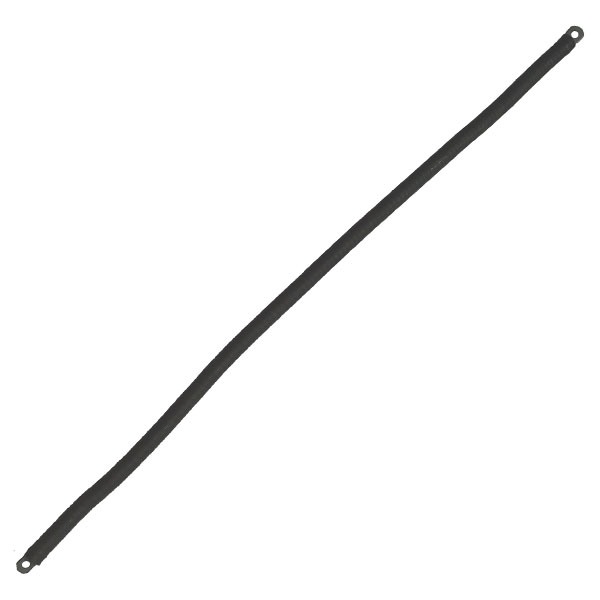

  • Garador inner spring assembly to suit Mk4 / F-Type garage doors (manufactured before 2002) which have springs enclosed inside a metal frame.

  • This is for the inner spring only.  If you require the complete set of inner and outer springs, please see our related products area below. Please note, image 3 shows the complete spring assembly for identification purposes only.

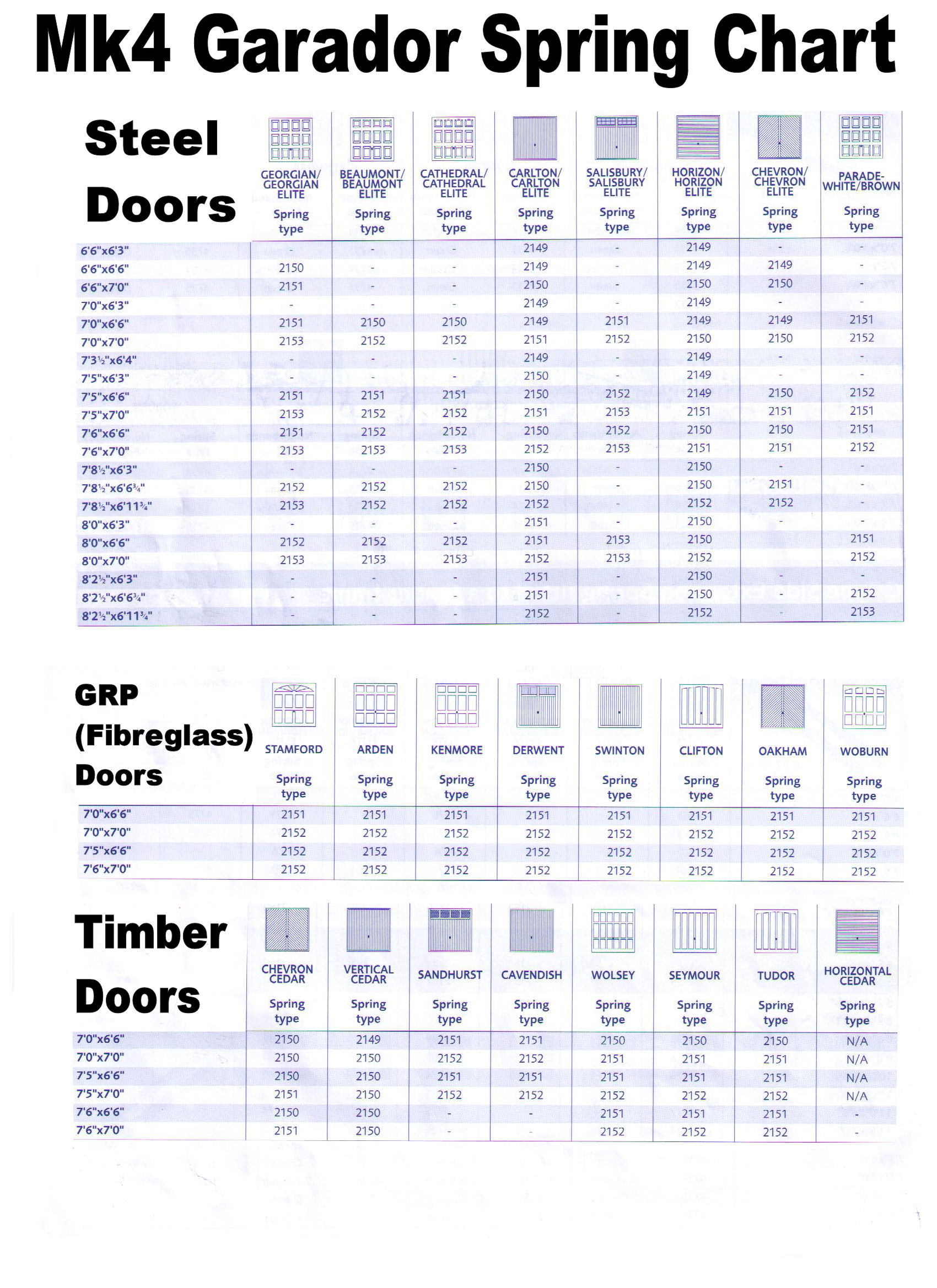

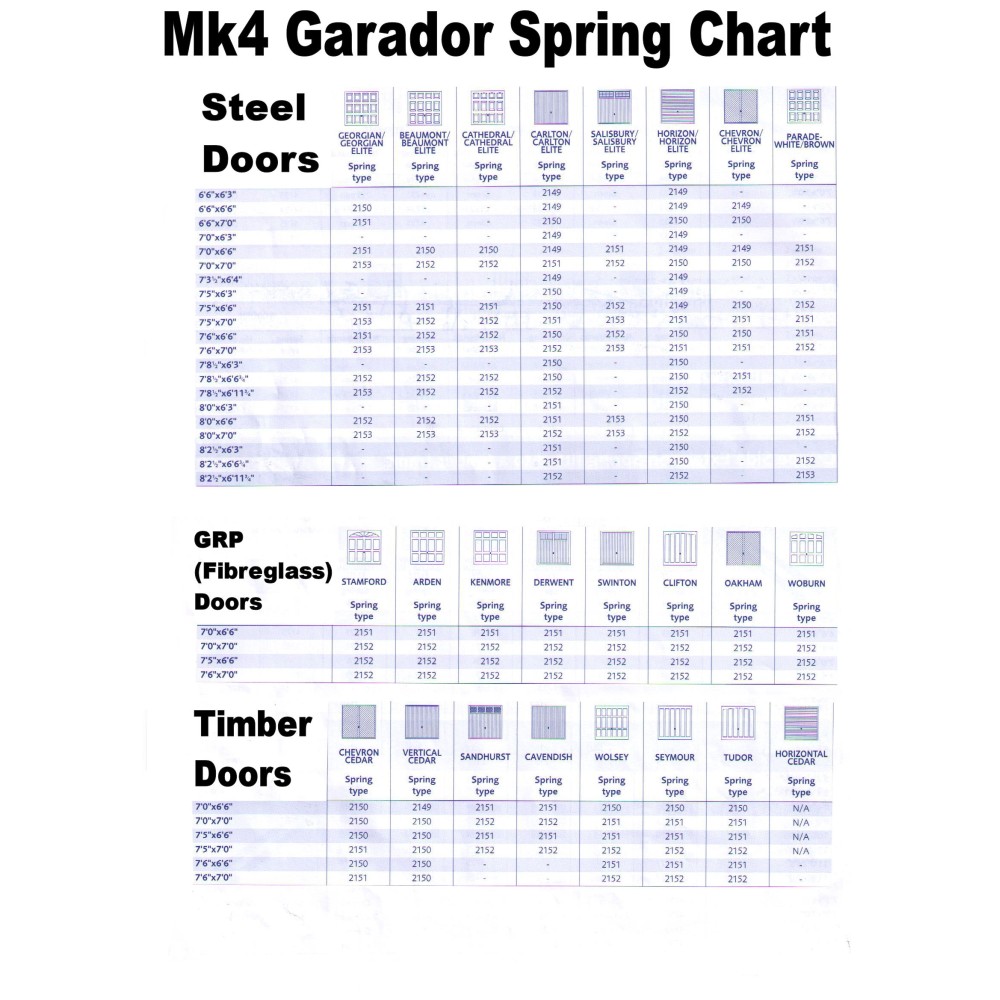

  • There are 5 variations, please identify by using our spring chart. You will need to know the panel style of your door by comparing to the pictures in our chart (or looking at the label on your door), and the door size.  Alternatively, check out your existing springs for for the number which will be stamped on the end of the original spring on the metal eye;

    Stamped 1(current part no: 2149)
    Stamped 2(current part no: 2150)
    Stamped 4 - (current part no: 2151)
    Stamped 5(current part no: 2152)
    Stamped 7 - (current part no: 2153)

  • If you need any help identifying your door or spring required, please give us a call or email
Spring Specification
Door Width Single
Spring Diameter 36mm
Spring Wire Diameter N/A
No. of Coils N/A
Spring Length 965mm
