Garador ORIGINAL DR / RM Garage Door Spring

Trustpilot
Garador ORIGINAL DR / RM Garage Door Spring
Garador ORIGINAL DR / RM Garage Door Spring
Garador ORIGINAL DR / RM Garage Door Spring
Garador ORIGINAL DR / RM Garage Door Spring

Saturday /Sunday Delivery Available

Saturday/Sunday delivery available for orders placed between Thursday 12 pm Mid-Day - Friday 12 pm Mid-Day

Calculate Shipping Cost

Enter your postcode into the box below. Cost displayed is for all items in your basket. To View our shipping rates please click here.

Post Code:
Calculate Shipping Cost (Entire Order)

Spring Finder

Click the button below to view the Spring Chart to help you find the correct spring.

SPRING FINDER
Garador ORIGINAL DR / RM Garage Door Spring
Ask a question about this product
  • Stock: In Stock
  • Model: Garador DR/RM Spring
Garador Garador
Based on 1 reviews. - Write a review
£87.95
Ex Tax: £73.29
Buy 1 For £88.96 each ex VAT £74.13
Buy 4 For £87.95 each ex VAT £73.29

Available Options

Add to Cart
Buy Now & Checkout With Card
Add to Wish List
  • When replacing garage springs, it is recommended to replace both springs at the same time, to ensure the spring tension and door remain balanced.

  • Garador Original DR/RM type spring is to suit Retractable doors with two springs down either side.  These doors have horizontal tracks, when the door is open it goes in the garage almost all the way.

  • You can identify that your door is a DR/RM type as the lift arms are approx 3ft 9 3/4" in length and have 3 fixing point holes in the top of the arm.  It is recommended that you replace a pair at the same time.

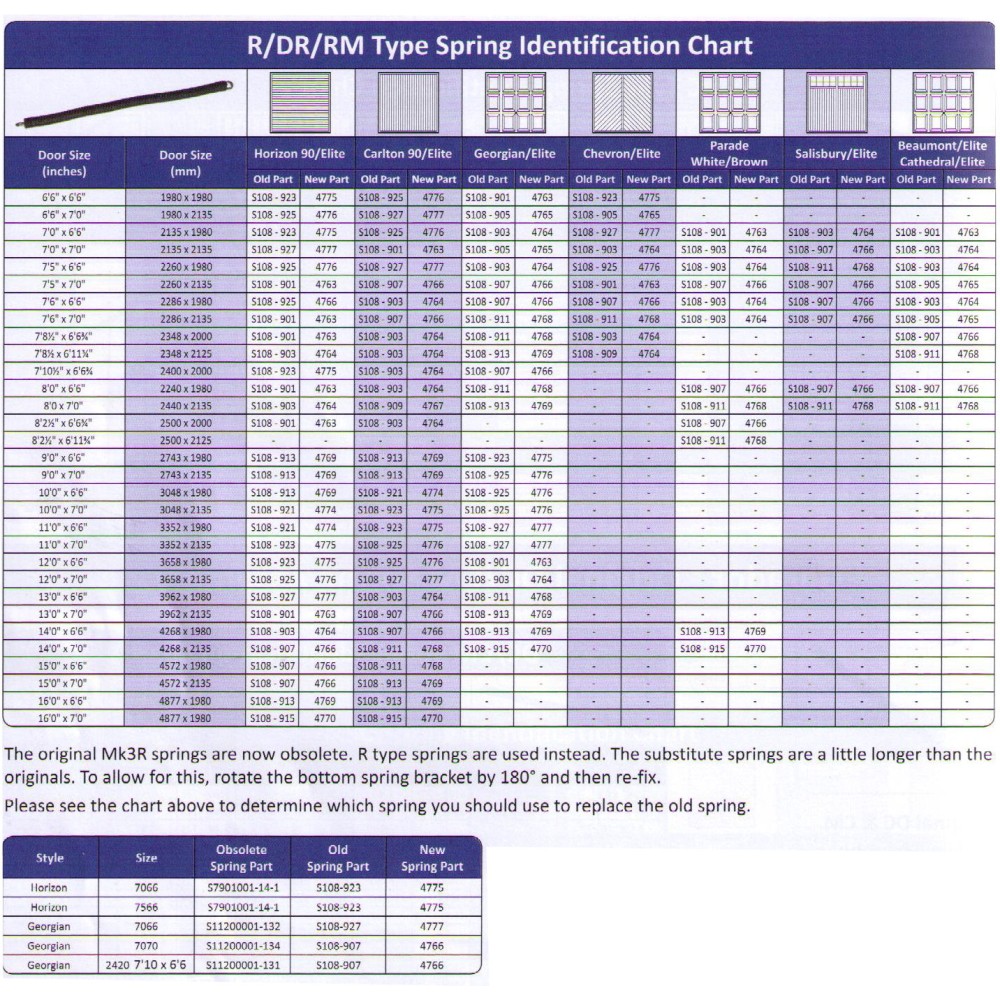

  • There are 12 varying strengths of this spring.  They are identified by the number stamped on one end of the spring, or by using our spring chart;

    Spring S108-901: (current part no: 4763)
    Spring S108-903: (current part no: 4764)
    Spring S108-905: (current part no: 4765)
    Spring S108-907: (current part no: 4766)
    Spring S108-909: (current part no: 4767)
    Spring S108-911: (current part no: 4768)
    Spring S108-913: (current part no: 4769)
    Spring S108-915: (current part no: 4770)
    Spring S108-921: (current part no: 4774)
    Spring S108-923: (current part no: 4775)
    Spring S108-925: (current part no: 4776)
    Spring S108-927: (current part no: 4777)

  • Wire Diameter N/A

  • Number of Coils 182

  • Overall Diameter 28mm

  • Length Excluding Hooks 610mm

  • Please see spring table to determine the spring number required, or to confirm correct spring strength for size of door.  The spring number is usually stamped into one end of the spring


Buy 1 For £88.95 each ex VAT £74.13

Buy 4 For £87.95 each ex VAT £73.29


Spring Specification
Door Width Double
Spring Diameter 28mm
Spring Wire Diameter N/A
No. of Coils 182
Spring Length 610mm
