Henderson Retractable Red Garage Door Spring - No. 5

Henderson Retractable Red Garage Door Spring - No. 5

Saturday /Sunday Delivery Available

Saturday/Sunday delivery available for orders placed between Thursday 12 pm Mid-Day - Friday 12 pm Mid-Day

Calculate Shipping Cost

Enter your postcode into the box below. Cost displayed is for all items in your basket. To View our shipping rates please click here.

Spring Finder

Click the button below to view the Spring Chart to help you find the correct spring.

SPRING FINDER
Henderson Retractable Red Garage Door Spring - No. 5
  • Stock: In Stock
  • Model: Henderson Retractable Spring - Red No. 5
£59.95
Ex Tax: £49.96

Available Options

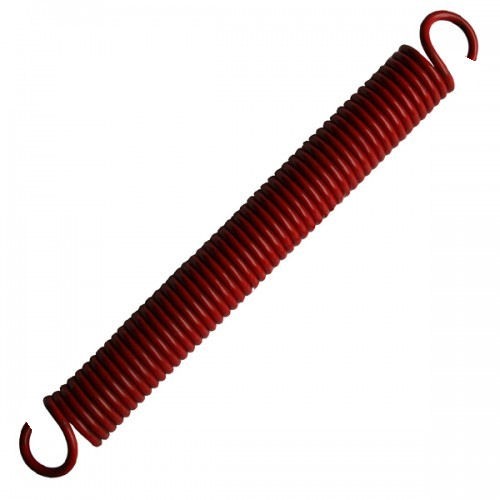

  • Henderson Retractable Red garage door spring for small garage doors.  The doors which these springs fit have more than 1 spring fitted to each lift arm on both sides of the door.  They usually have a yellow tag with a number on, this particular spring is a No.5. Please see our related products area below for other springs in this range

  • This range of springs has an elongated hook to allow the spring to clear the lift arm when the door is closing.  This is unique to these Henderson retractable springs.

  • Please be aware, if you try and fit other springs to your door, which should have these springs fitted, you will end up damaging your lift arms as there won't be enough clearance and the spring hook will foul your arm. The lift arms are not available to buy. On this particular door we advise you to replace all the springs as a set so they door is balanced and does not cause twisting and wear to your lift arms.

  • When replacing garage springs, it is recommended to replace both springs at the same time, to ensure the spring tension and door remain balanced. This will also prevent the door from twisting and damaging your lift arms.

  • These springs are obsolete, we have a limited quantity of these springs available.

  • They are supplied as a galvasnised wire with a red marker

  • Wire Diameter 6.80mm

  • Number of Coils 47

  • Overall Diameter 67mm

  • Length Excluding Hooks 320mm

  • Please see our related products area below for the other springs for single and larger double-width doors available in this range
Spring Specification
Door Width Double
Spring Diameter 67mm
Spring Wire Diameter 6.80mm
No. of Coils 47
Spring Length 320mm
