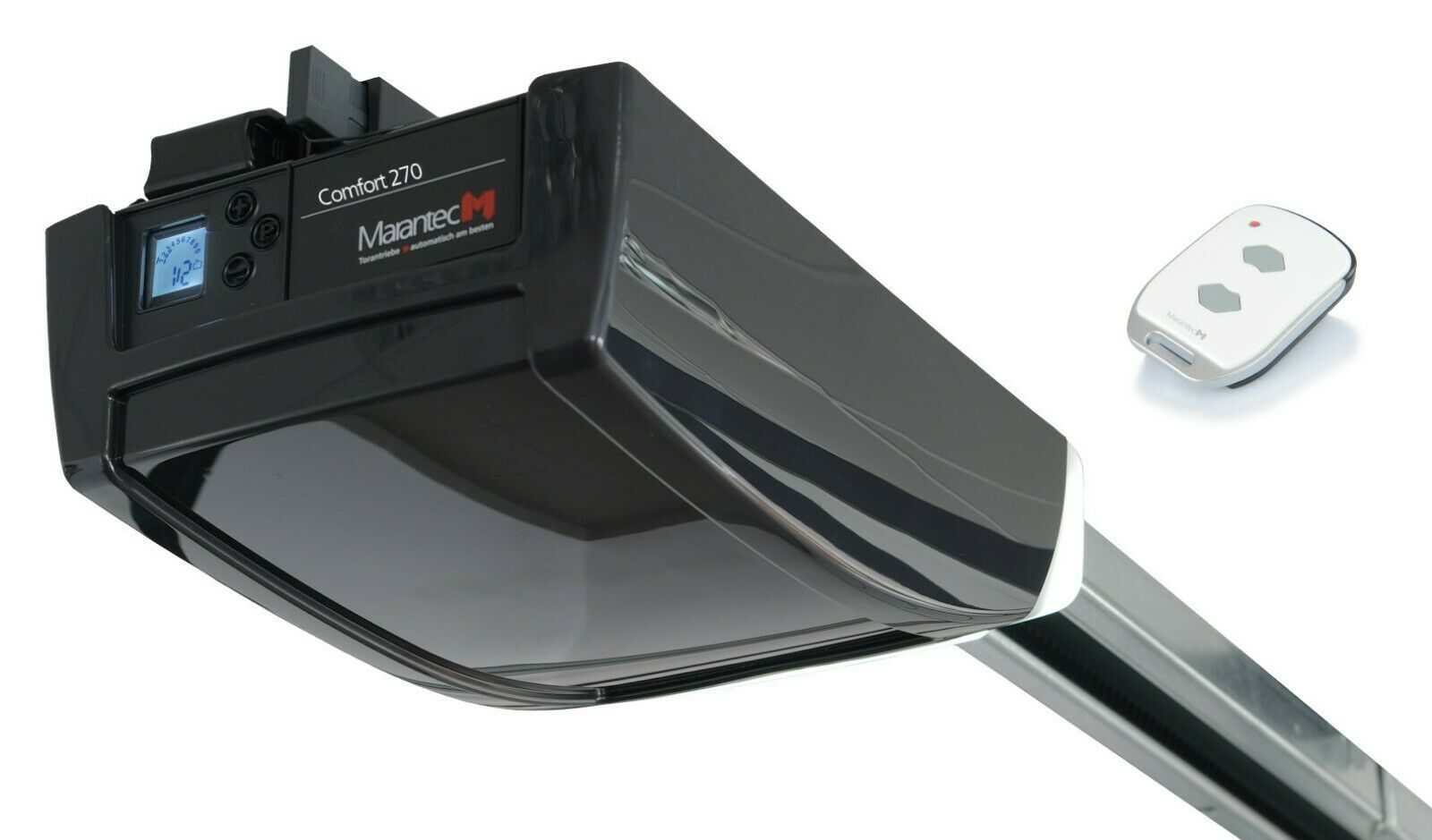

Marantec Comfort 270 Motor Head & Rail Kit
- Stock: In Stock
- Model: Marantec 270 Motor Head & Rail Kit
£329.95
Ex Tax: £274.96
Comfort 270 – Operator system for garage doors

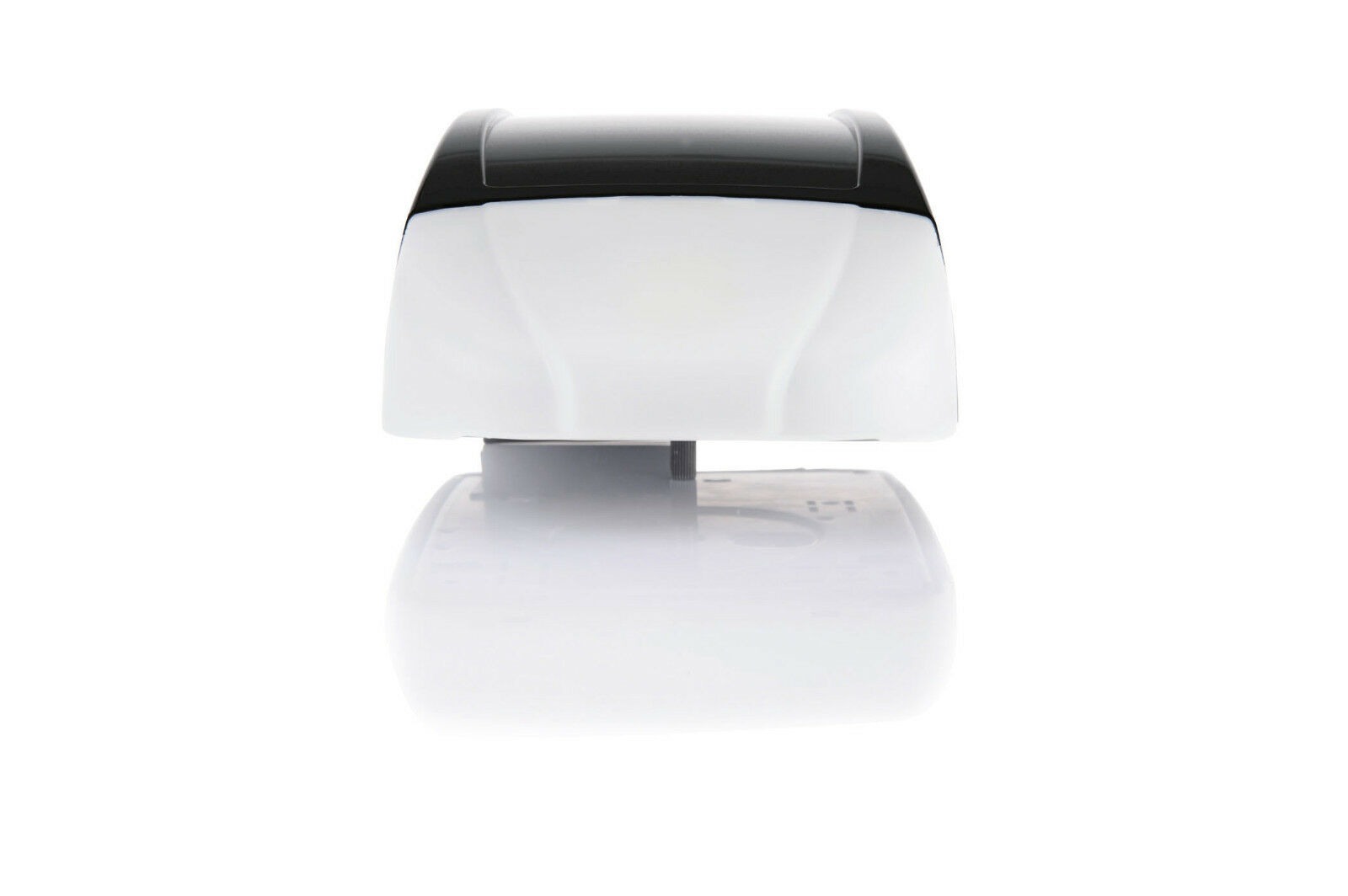

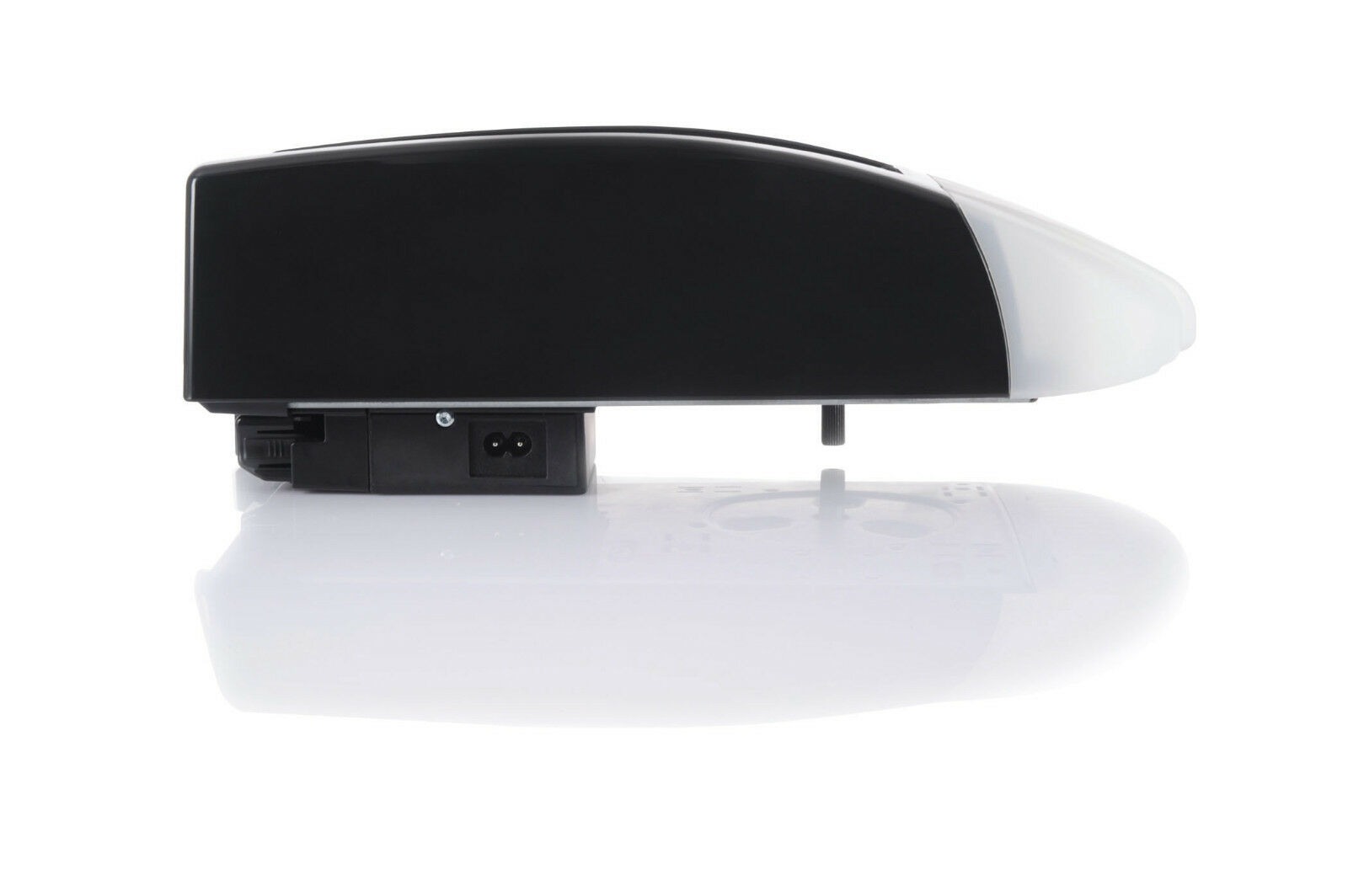

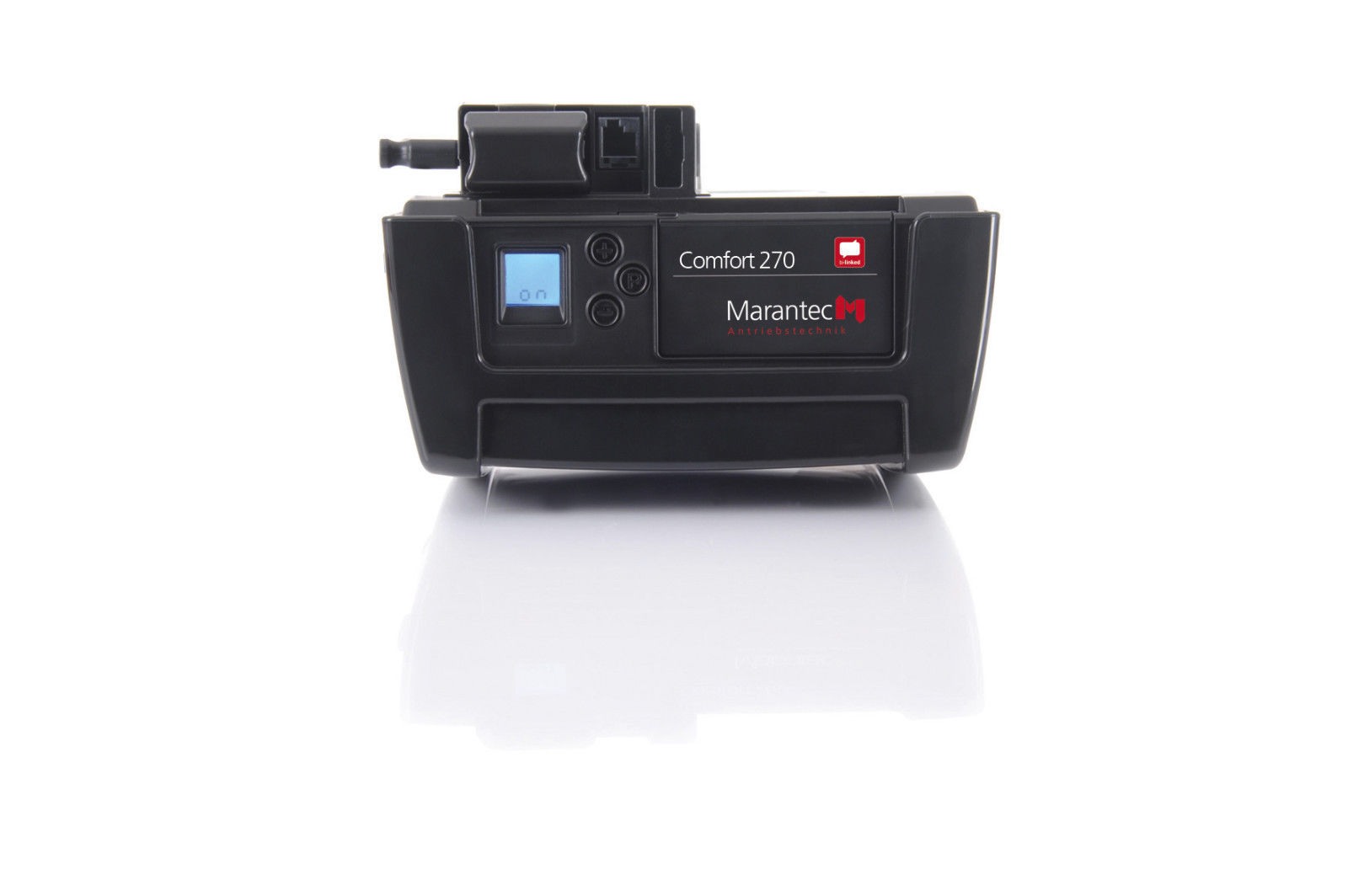

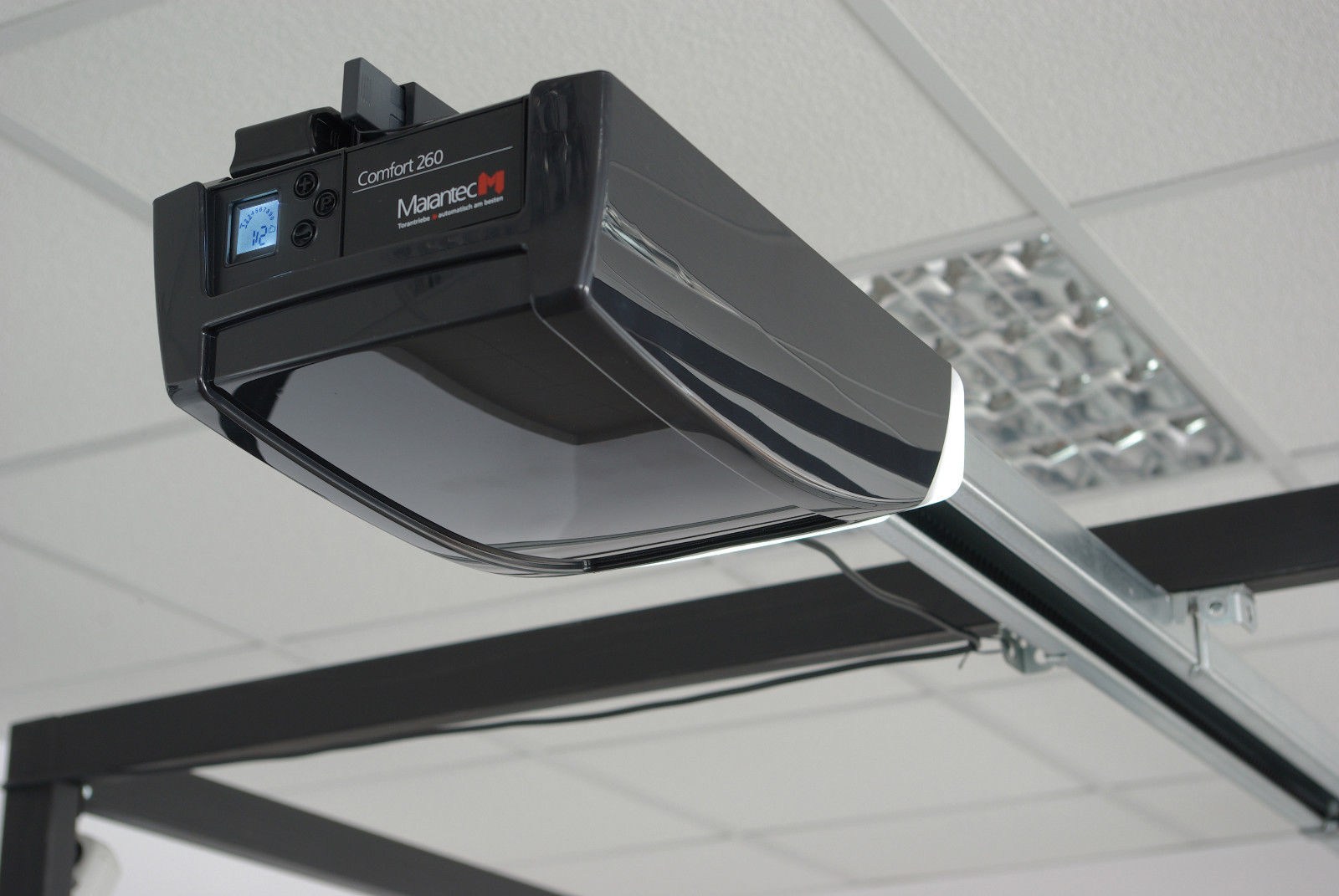

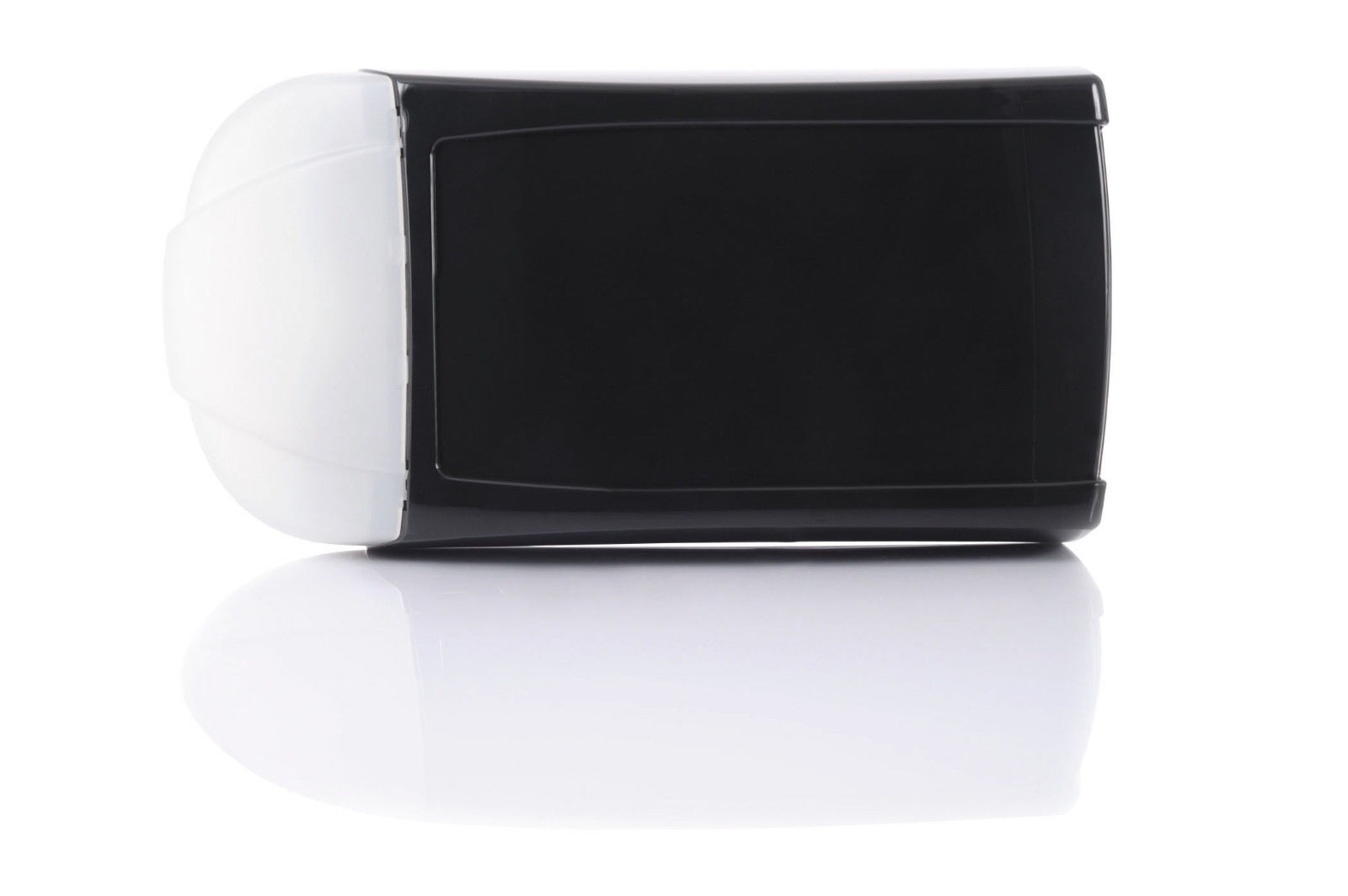

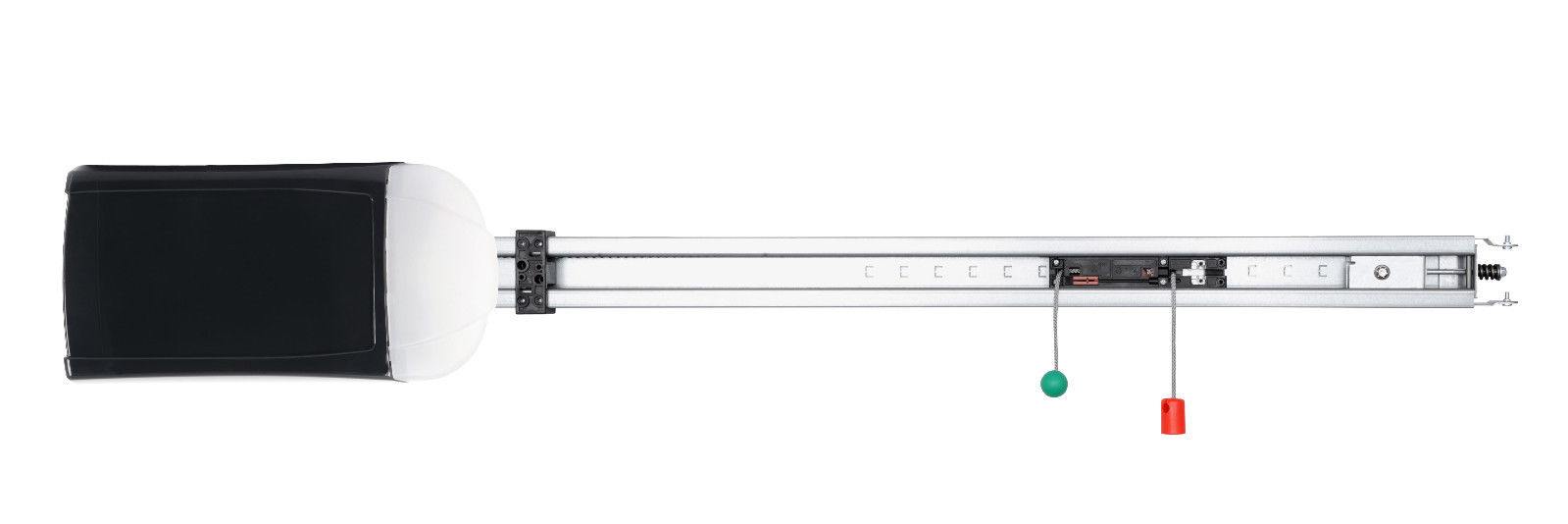

Motor unit Comfort 270 (Standard) complete with SZ11 Boom (Rail)
Operator system for garage doors – domestic use
- For up-and-over doors up to a door width of 5000 mm and a door weight of 165 Kg
- For single-skinned sectional doors up to a door width of 5500 mm and a door weight of 165 Kg
- For double-skinned sectional doors up to a door width of 5500 mm and a door weight of 165 Kg
- For retractable up-and-over doors and canopy doors up to a door width of 5000 mm, a door height of 2250 mm and a door weight of 165 Kg
- For maximum 50 complete open/close functions per day – 100 one way operations per day (corresponding to class 2 of the RAL quality mark)
- For operator rails with roller chains, ball rope or toothed drive belts
- LED light output 40W

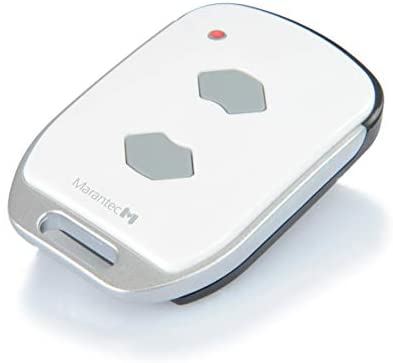

- Comes complete with 2 x handsets (868MHz)
- Universal Mounting Kit for up-and-over doors and sectional doors
Electrical details
- Nominal voltage 230 V
- Nominal frequency 50 Hz
- Power consumption 1,1 A
- Power input in operation 0,25 KW
- Power input stand-by 1,7 W
- Operation mode (duty cycle) KB 2 min.
- Control voltage 24 V DC
- Protection category motor unit IP 20
- Protection class II
Mechanical details
- Push and pull force 1000 N
- Door travel speed 160 mm/sec.
- Opening time (door-specific) approx. 18 sec.
General details
- Measurements (Motor unit) 220 x 125 x 395 mm
- Weight 4,2 kg
- Range of temperature -20°C to +60°C
- Illuminant LED (extendable) 40 / 80 W
Functions
- Economy mode
- Reference point technique
- Electronic travel cut-out
- Soft start/soft stop
- Push-open security
- Anti-blocking device
- Excess travel stop
- Release from inside
- Connection for pushbuttons, code keypads and key switches
- Automatic cut-out `Open` and `Close` separately programmable
- Partial opening programmable
- Door travel speed `Open` and `Close` separately programmable
- Soft run position `Open` and `Close` separately programmable
- Soft run travel speed `Open` and `Close` separately programmable
- 3 minutes light programmable for lighting the garage
- Automatic timer function
- Connection potential-free limit switch information
Retrofitting of potential-free signal relay possible for;
- Signal light
- Wiping impluse
- 3 minutes light
- Final position message
- Alarm system
- Malfunction message
- Error message
- Reset function

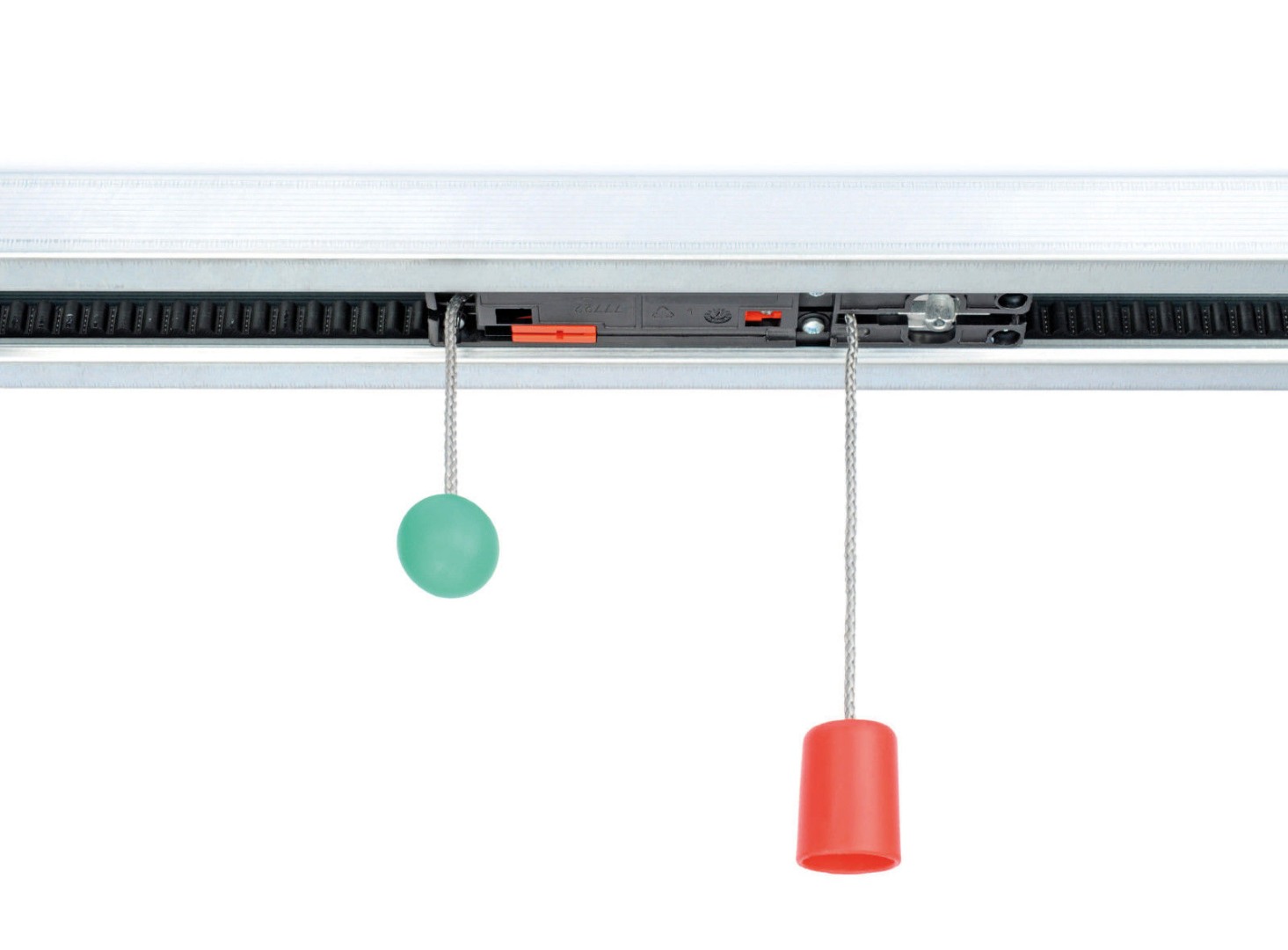

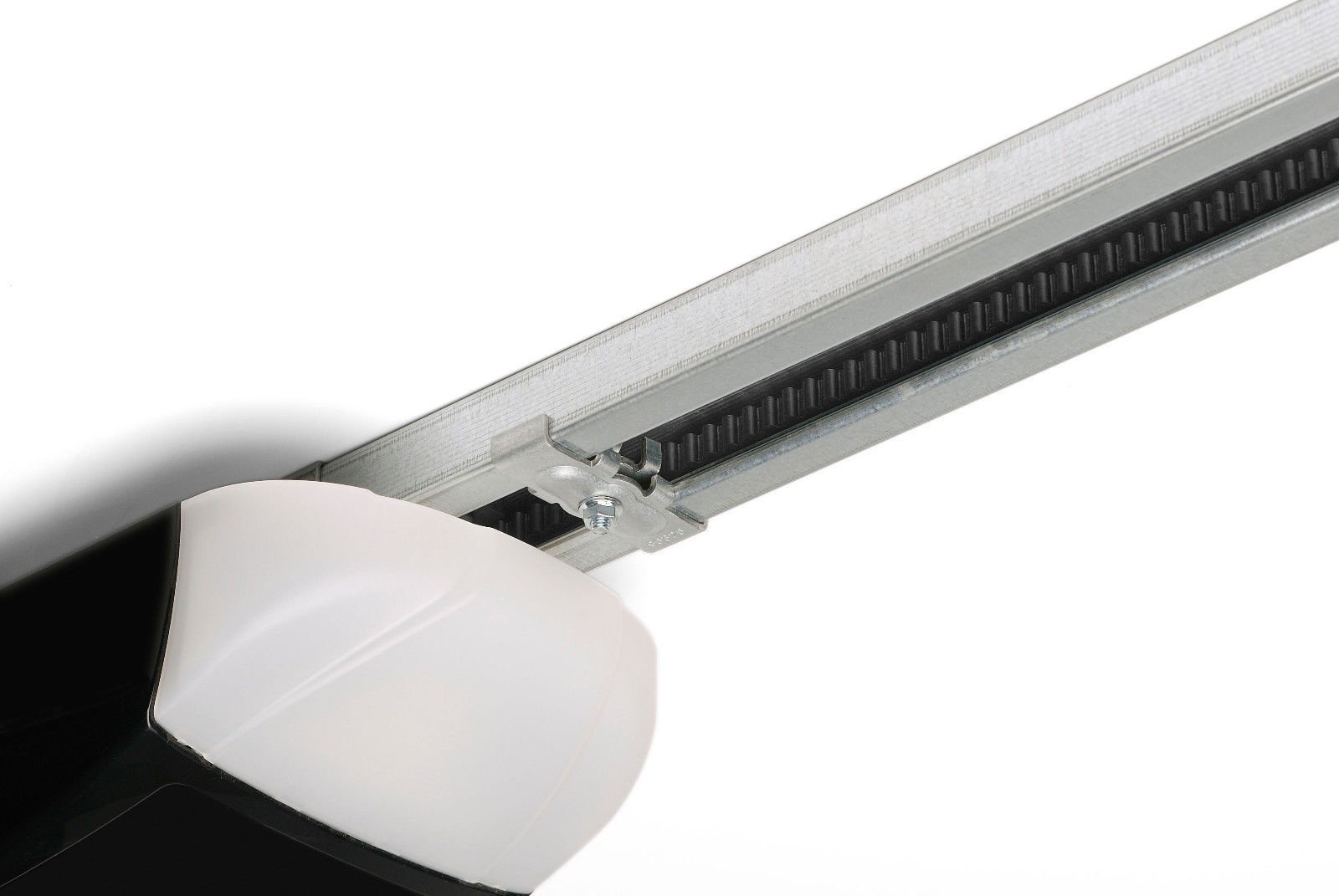

A one-piece SZ11 STANDARD Beltdrive rail
- Measurements (L) 3080 mm
- Length of travel 2475 mm
- Packing length 3140 mm
