Marantec Comfort 280 Motor Head Only

Trustpilot
Marantec Comfort 280 Motor Head Only

Saturday /Sunday Delivery Available

Saturday/Sunday delivery available for orders placed between Thursday 12 pm Mid-Day - Friday 12 pm Mid-Day

Calculate Shipping Cost

Enter your postcode into the box below. Cost displayed is for all items in your basket. To View our shipping rates please click here.

Post Code:
Calculate Shipping Cost (Entire Order)
Marantec Comfort 280 Motor Head Only
Ask a question about this product
  • Stock: In Stock
  • Model: Marantec 280 Motor - Head Only
Marantec Marantec
Based on 1 reviews. - Write a review
£282.95
Ex Tax: £235.79
Add to Cart
Buy Now & Checkout With Card
Add to Wish List

Marantec Comfort 280 – Operator system for garage doors

Operator system for garage doors – domestic use

  • For up-and-over doors up to a door width of 6000 mm and a door weight of 200 Kg
  • For single-skinned sectional doors up to a door width of 6000 mm and a door weight of 200 Kg
  • For double-skinned sectional doors up to a door width of 6000 mm and a door weight of 200 Kg
  • For retractable up-and-over doors and canopy doors up to a door width of 6000 mm, a door height of 2250 mm and a door weight of 200 Kg
  • For maximum 50 complete open/close functions per day – 100 one way operations per day (corresponding to class 3 of the RAL quality mark)
  • For operator rails with roller chains, ball rope or toothed drive belts
  • LED light output 40W
  • Comes complete with 2 x handsets (868MHz)
  • Universal Mounting Kit for up-and-over doors and sectional doors

    Electrical details

    • Nominal voltage 230 V
    • Nominal frequency 50 Hz
    • Power consumption 1,1 A
    • Power input in operation 0,25 KW
    • Power input stand-by 1,7 W
    • Operation mode (duty cycle) KB 2 min.
    • Control voltage 24 V DC
    • Protection category motor unit IP 20
    • Protection class II

    Mechanical details

    • Push and pull force 1000 N
    • Door travel speed 160 mm/sec.
    • Opening time (door-specific) approx. 18 sec.

    General details

    • Measurements (Motor unit) 220 x 125 x 395 mm
    • Weight 4,2 kg
    • Range of temperature -20°C to +60°C
    • Illuminant LED (extendable) 40 / 80 W

    Functions

    • Economy mode
    • Reference point technique
    • Electronic travel cut-out
    • Soft start/soft stop
    • Push-open security
    • Anti-blocking device
    • Excess travel stop
    • Release from inside
    • Connection for pushbuttons, code keypads and key switches
    • Automatic cut-out `Open` and `Close` separately programmable
    • Partial opening programmable
    • Door travel speed `Open` and `Close` separately programmable
    • Soft run position `Open` and `Close` separately programmable
    • Soft run travel speed `Open` and `Close` separately programmable
    • 3 minutes light programmable for lighting the garage
    • Automatic timer function
    • Connection potential-free limit switch information


    Retrofitting of potential-free signal relay possible for;

    • Signal light
    • Wiping impluse
    • 3 minutes light
    • Final position message
    • Alarm system
    • Malfunction message
    • Error message
    • Reset function

Write a review

Note: HTML is not translated!
Bad Good
Marantec Comfort 280 – Operator system for garage doorsOperator system for garage doors – domestic useFor up-and-over doors up to a door width of 6000..

Click the PayPal button below to skip checkout and pay via PayPal Express Checkout.

Check out with PayPal
Tags: motor , units , and , over , doors , chamberlain

Related Products

Quickview
Marantec Comfort 260 Motor Head Only
Marantec Comfort 260 Motor Head Only
Marantec Comfort 260 – Operator system for garage doorsOperator system for garage doors – domestic useFor up-and-over doors up to a door width of 3500..
£202.96
Ex Tax:£169.13
Add to Cart
Add to Wish List
Quickview
Marantec Comfort 270 Motor Head Only
Marantec Comfort 270 Motor Head Only
Comfort 270 – Operator system for garage doorsMotor unit Comfort 270 (Standard)Operator system for garage doors – domestic useFor up-and-over doors up..
£249.95
Ex Tax:£208.29
Add to Cart
Add to Wish List
Quickview
Marantec Comfort 270 Motor Head & Rail Kit Marantec Comfort 270 Motor Head & Rail Kit

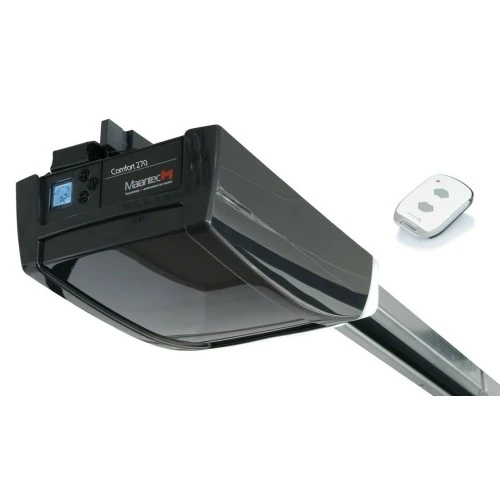

Marantec Comfort 270 Motor Head & Rail Kit
Comfort 270 – Operator system for garage doorsMotor unit Comfort 270 (Standard) complete with SZ11 Boom (Rail)Operator system for garage doors – domes..
£329.95
Ex Tax:£274.96
Add to Cart
Add to Wish List
Quickview
Marantec Comfort 260 Motor Head & Rail Kit Marantec Comfort 260 Motor Head & Rail Kit
Marantec Comfort 260 Motor Head & Rail Kit
Marantec Comfort 260 – Operator system for garage doorsOperator system for garage doors – domestic useFor up-and-over doors up to a door width of 3500..
£282.95
Ex Tax:£235.79
Add to Cart
Add to Wish List
Quickview
Marantec SZ11 Standard Belt Drive - Rail Only Marantec SZ11 Standard Belt Drive - Rail Only
Marantec SZ11 Standard Belt Drive - Rail Only
Marantec standard Belt Rail (Boom)Suits all the current Marantec Motor Head units in our rangeA one-piece SZ11 STANDARD Beltdrive railMeasurements (L)..
£113.95
Ex Tax:£94.96
Add to Cart
Add to Wish List
Quickview
Marantec Genuine Remote Control Handset D572-868 Bi Link Marantec Genuine Remote Control Handset D572-868 Bi Link
Marantec Genuine Remote Control Handset D572-868 Bi Link
x1 Genuine Marantec Remote Control Handset D572-868 Bi Link Marantec digital 572 868mHz 2 channel hand transmitter white Only works with 260..
£38.75
Ex Tax:£32.29
Add to Cart
Add to Wish List
Quickview
Marantec 633 Special Photocell Kit Marantec 633 Special Photocell Kit

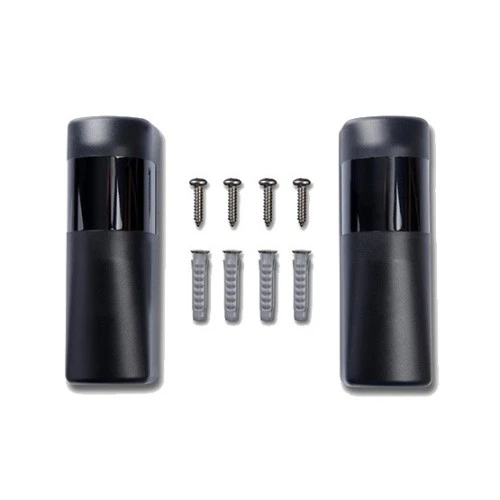

Marantec 633 Special Photocell Kit
